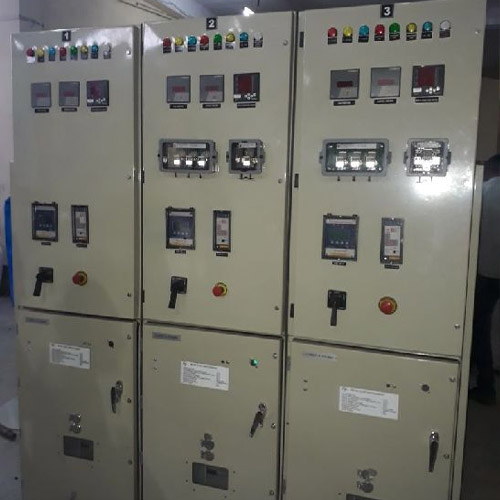

We make vacuum circuit breaker (VCB) panels with the following technical specifications, up to 33 kV:
No-maintenance architecture
Positive mounting system
Interlocks that stop the entry and removal of closed CB
Only in test or support positions can CB work.
Cassette systems make retrofitting simple.
Maximum Voltage: 12/24/36 kV
Insulation level: 28/75- 50/125-70/170 (kVrms/kVp).
1250-2500/ 1600/ 1600 Maximum Current (A)
kilowatts (kA) of braking power: 18.5-40/40/26.
2 additional specifics are available upon request.
